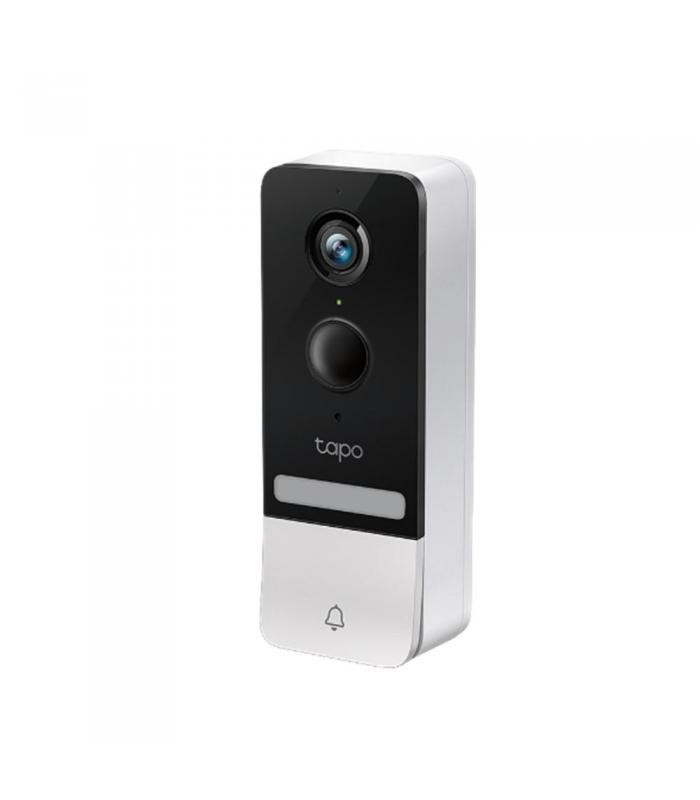

Timbre inteligente tp - link tapo d230s1

Especificaciones
Cámara
Sensor de Imagen:
1/2.7"
Lentes:
F/NO: 2.1
Night Vision:
LED IR de 850 nm hasta 7,5 m
Lighting:
Built-in Spotlights
Interface & Button :
1 RESET Button
1 Doorbell Button
1 Anti-Theft Button
Hub Compatibility:
Compatible with H200 (Included)
Weatherproof Rating:
IP64
Ángulo de Visión:
160 Diagonal
Resolución:
2K 5MP (2560 1920px)
HUB
Device Compatibility:
Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.

All Supported Products>,
Connection Capacity:
Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells
Interface & Button:
1 Ethernet Port
1 RESET Button
1 MicroSD Card Slot (Up to 512 GB)
1x SYNC Button
VIDEO & AUDIO
Maximum Resolution:
2K 5MP (2560 1920px)
Frame Rate:
15 fps
Digital Zoom:
16x
Video Compression:
H.264
Live View:
Yes
Image Enhancement:
3DNR
WDR
Audio Input & Output:
Built-in Microphone and Speaker
Audio Communication:
Two-Way Audio with Noise Cancellation
Siren Volume:
Doorbell:
96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance)
Hub:
100 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage:
MicroSD Card Slot on Hub (Up to 512 GB)
General Information about using MicroSD Cards >,
Cloud Storage:
Tapo Care Cloud Storage Services (Subscription required)
VIDEO
Frame Rate:
15 fps
Streaming de Vídeo:
2K 5MP
Compresión de Audio:
G.711
Compresión de Vídeo:
H.264
DETECTION and NOTIFICATIONS
Sensor:
Single PIR Motion Sensor (FOV: 130 horizontal)
One Ambient Light Sensor
AI Detection:
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Package Detection
Activity Zones:
Yes
*Only works with Motion Detection.
Output Notification :
System Notification
System Notification with Snapshot (Tapo Care Services)
AUDIO
Comunicación de Audio:
Audio bidireccional
Audio Input & Output::
Micrófono y altavoz integrados
Red
Network Connectivity:
Connect via Wi-Fi
Wireless Connectivity:
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Sub-1G, 868MHz (Used for local connection between doorbell and hub)
Protocolo:
TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Ethernet Port:
1 10/100 Mbps RJ45 Port on Hub
Seguridad Inalámbrica:
WPA/WPA2-PSK
Estándares y Protocolos:
IEEE 802.11b/g/n, 2.4 GHz
SEGURIDAD:
Cifrado AES de 128 bits con SSL/TLS
Frecuencia:
2.4 GHz
SEGURIDAD
Security:
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK
POWER
Power Source:
Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery
Hub: 9V DC Power Adapter
Input Voltage:
Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz
Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A
Output Voltage:
Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A
Hub Adapter Output: 9.0 V, 0.85 A
DC Power Connector Size:

GENERAL
Smart Integration:
Google Assistant, Amazon Alexa
Weather Resistance:
IP64
System Requirements :
Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options:
Stick to a Wall
Mount to a Wall
Operating Temperature:
-20~45
Storage Temperature:
-20~45
Operating Humidity:
10%~90% RH, Non-condensing
Storage Humidity:
5%~90% RH, Non-condensing
Dimensions:
Doorbell Dimensions: 5.7 0.21 1.3 in (146 54.5 35.5 mm)
Hub Dimensions: 2.8 2.8 1.2 in (71.45 71.45 31.25 mm)
Contenido del Paquete:

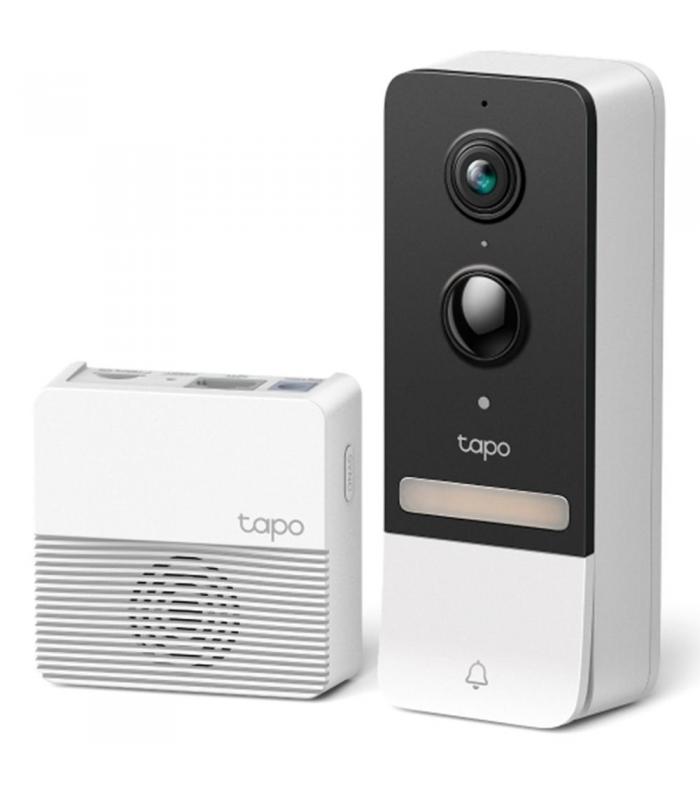

Tapo Video Doorbell 1
Tapo H200 Hub 1
Tapo A100 Battery 1
DC Power Adapter 1
USB Adapter 1
USB Adapter Cable 1
RJ45 Ethernet Cable 1
Inclined Mounting Templates 1
Mounting Templates 2
Mounting Brackets 1
15 Mounting Wedge 1
Doorbell Detaching Pin 1
Screws and Anchors 2
Quick Start Guide
Certificaciones:
CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA
ACTIVITY NOTIFICATIONS
Montaje en Rack:
Detección de movimiento, Detección de paquetes, Detección de personas, Detección de mascotas, Detección de vehículos.
Output Notification:
Notificación,Instantánea(Tapo Care),Clips(Tapo Care).
Factores Ambientales
Operating Temperature:
-20~45(-4F ~113 F )
Storage Temperature:
-20~45(-4F ~113 F )
Operating Humidity:
10%~90% HR, sin condensación
Storage Humidity:
5%~90% HR, sin condensación
HARDWARE
Botones:
Botón de timbre: Botón Reset/SYNC/Anit-Theft
Botón Hub: Botón Reset, Botón SYNC
Indicator LED:
LED indicador del timbre: LED del sistema
LED indicador del concentrador: LED del sistema
Adapter Input:
Entrada de adaptador de timbre: 100-240V, 50/60Hz
Entrada del adaptador de hub: 100-240 V, 50/60 Hz, 0,3 A
Adapter Output:
Salida del adaptador de timbre: 5.0V, 1.0A
Salida del adaptador de hub: 9,0 V, 0,85 A
Product Dimensions (W x D x H):
Dimensiones de la cámara (largo x ancho x alto): 5,7*0,21*1,3 pulg.
(146*54,5*35,5 mm)

- Dimensiones del Hub(L x A x A): 2,8 x 2,8 x 1,2 pulg.
(71.45*71.45*31.25mm)
